Shader Test Framework

Links

Summary

Shader Test Framework is a unit testing library for shader code, heavily inspired by Catch2. It is intended to be an exploration into how we can better test our shader code.

It is written with C++23, using DirectX 12 Ultimate as the graphics API.

Features

Write tests in HLSL

Remove the need to compare screenshots to test graphics code

int GetNum()
{
    return 42;
}

[numthreads(1, 1, 1)]
void Example()
{
    ASSERT(AreEqual, GetNum(), 42);
}

Write Catch2 style tests

Use SCENARIO and SECTIONs to write complex test suites

SCENARIO("GIVEN An Optional that is reset")
{
    Optional<int> opt;

    SECTION("value is set")
    {
        opt.Set(42);

        SECTION("IsValid returns true")
        {
            ASSERT(IsTrue, opt.IsValid);
        }
    }
}

Formatted test results

Quickly find the thread and assert that failed


There were 127 successful asserts
and 1 failed assertions
Assert 0:
SCENARIO: GIVEN Optional that is reset
  SECTION: THEN IsValid returns false
    Data 1: false

=======================================
test cases: 3 | 2 passed | 1 failed
assertions: 3 | 2 passed | 1 failed

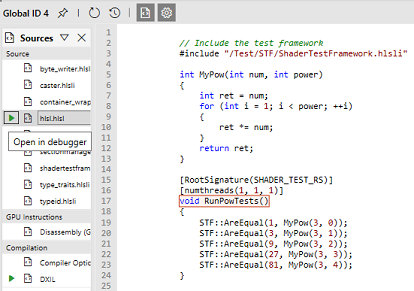

Auto generate PIX capture on failure

Easily debug shader test failures using the PIX captures generated
